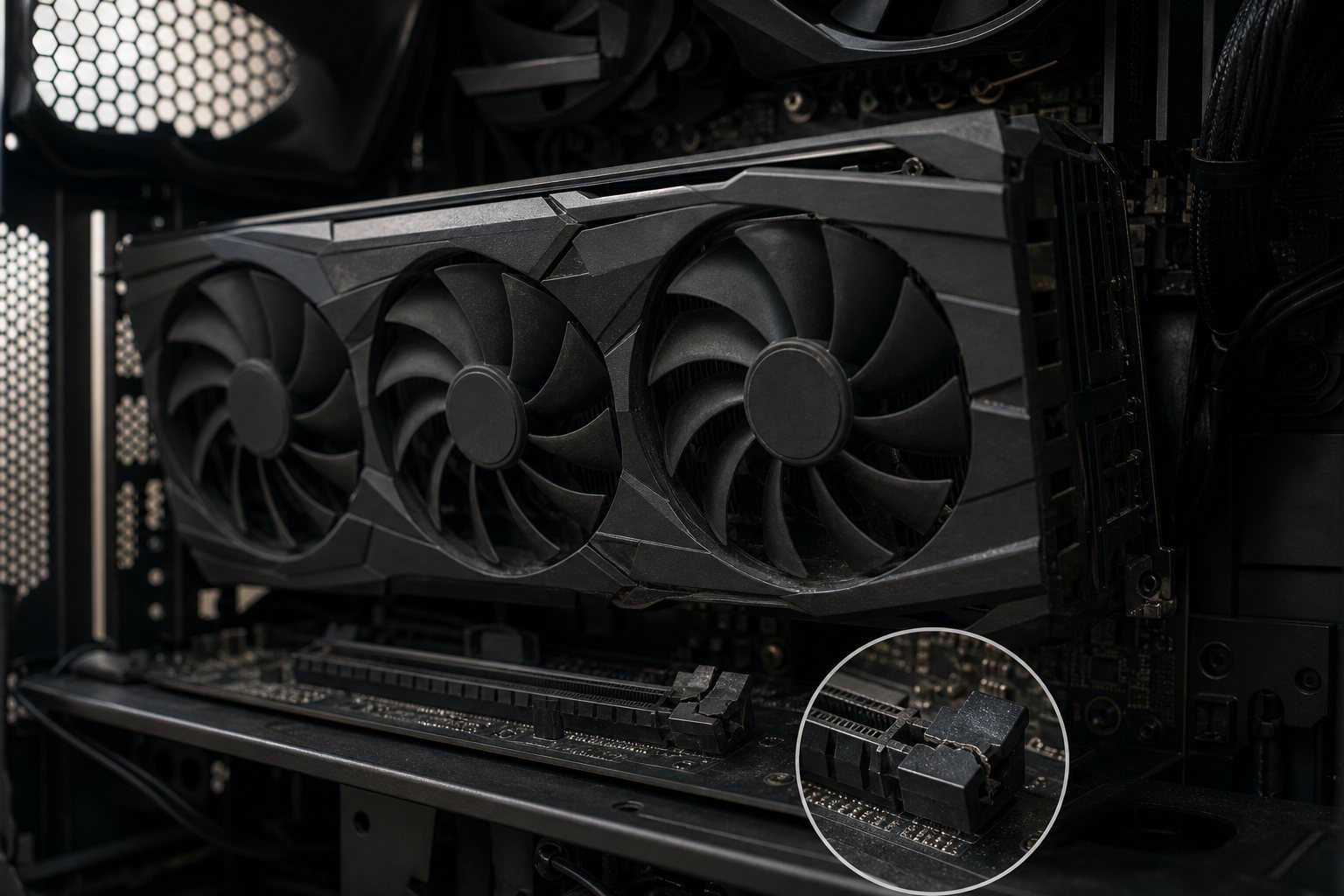

GPU Sag and PCIe Slot Damage on Used PCs

Modern graphics cards can be long and heavy enough to sag at the unsupported end. A small visual drop is common and may be cosmetic, but severe sag or transport impact can bend the bracket, flex the card, loosen the slot, and create intermittent contact. The risk is highest when a complete tower was shipped or carried with the GPU installed. This guide focuses on mechanical evidence. For electronic identity and stability, pair it with our GPU meetup checks.

Judge alignment from several reference points

Place the case on a flat surface and view the GPU from the front, side, and rear. Compare the card edge with the motherboard, case expansion slots, and a small level if available. A case itself can be twisted, so one photo angle is unreliable. Check whether the rear bracket sits flush and both screws are installed. Severe droop, a cooler pulling away from the PCB, or a bracket forced sideways indicates more than ordinary cosmetic sag.

Inspect the PCIe slot and retention latch

Power down, unplug, and discharge the system before touching the card. With the seller's permission, illuminate the primary slot. Look for a broken retention latch, cracked plastic, separation from the motherboard, lifted reinforcement, or discolouration near contacts. Gently test for unusual movement without levering the card. A missing latch does not always stop operation, but it reduces retention. Cracked solder joints beneath the slot may cause faults that appear only when the case moves.

Look for PCB, cooler, and connector stress

Inspect the graphics card circuit board near the gold edge connector and power sockets. Look for a bowed PCB, cracks, chipped edge, cooler gap, or damaged backplate screws. Ensure power cables are not pulling the card downward or sideways. A tight glass panel can press an adapter into the connector. If the card was previously mounted vertically, inspect the riser and mount as well. Do not attempt to straighten a loaded PCB during the meeting.

Test for movement-sensitive failures

Run a benchmark with the case stationary and watch for black screens, driver resets, or PCIe link changes. Never shake a running PC. After shutdown, reseating may be appropriate only if the seller approves and you are comfortable doing it. Boot again and repeat the same test. If slight cable or case movement changes whether the GPU is detected, suspect contact, slot, riser, or solder damage. Intermittent mechanical faults are difficult and expensive to prove.

1. Photograph alignment before touching anything.
2. Inspect bracket screws, slot latch, PCB edge, and power-cable pull.
3. Check active PCIe link and run a repeatable load test.
4. Transport the card separately if the PC is purchased.

Evaluate support brackets correctly

A support bracket should contact a strong part of the cooler shroud or backplate without touching fans. It should lift the card only to neutral alignment, not force it upward. Magnetic supports need a steel case floor and should not slide during transport. Brackets reduce ongoing stress but cannot repair a cracked slot or bent PCB. Some cases and GPUs use anti-sag rails or reinforced mounts; verify that all original hardware is actually installed.

Plan safe transport and repair costs

For a heavy GPU, remove it before moving the tower and pack it in an anti-static bag with protective foam. If removal is impossible, support it internally and keep the case in the correct orientation, but separate transport is safer. Our PC packing guide covers longer trips. A replacement motherboard can require a full rebuild and Windows reactivation, so severe slot damage should reduce the offer substantially or end the deal.

Frequently asked questions

Is a small amount of GPU sag normal?

A slight drop at the far end is common on heavy cards and may not affect function. Check whether it is stable, the PCB is not sharply bent, the bracket is secure, and the slot shows no damage.

Can GPU sag reduce performance?

Sag itself does not reduce performance, but poor slot contact, a damaged riser, or cracked solder can cause link-width reduction, crashes, or loss of detection.

Should I transport a PC with the GPU installed?

Remove a heavy GPU whenever practical. The card becomes a lever during bumps, placing force on its connector and the motherboard slot even if a support bracket is present.

Can a broken PCIe latch be replaced?

Sometimes a skilled technician can repair the latch or slot, but access and parts vary. Treat it as motherboard damage and price professional repair rather than assuming an easy snap-in fix.

Key takeaways

• Use case, bracket, PCB, and slot references to judge sag.
• A support prevents stress but does not repair existing damage.
• Remove heavy GPUs before transporting a purchased tower.
