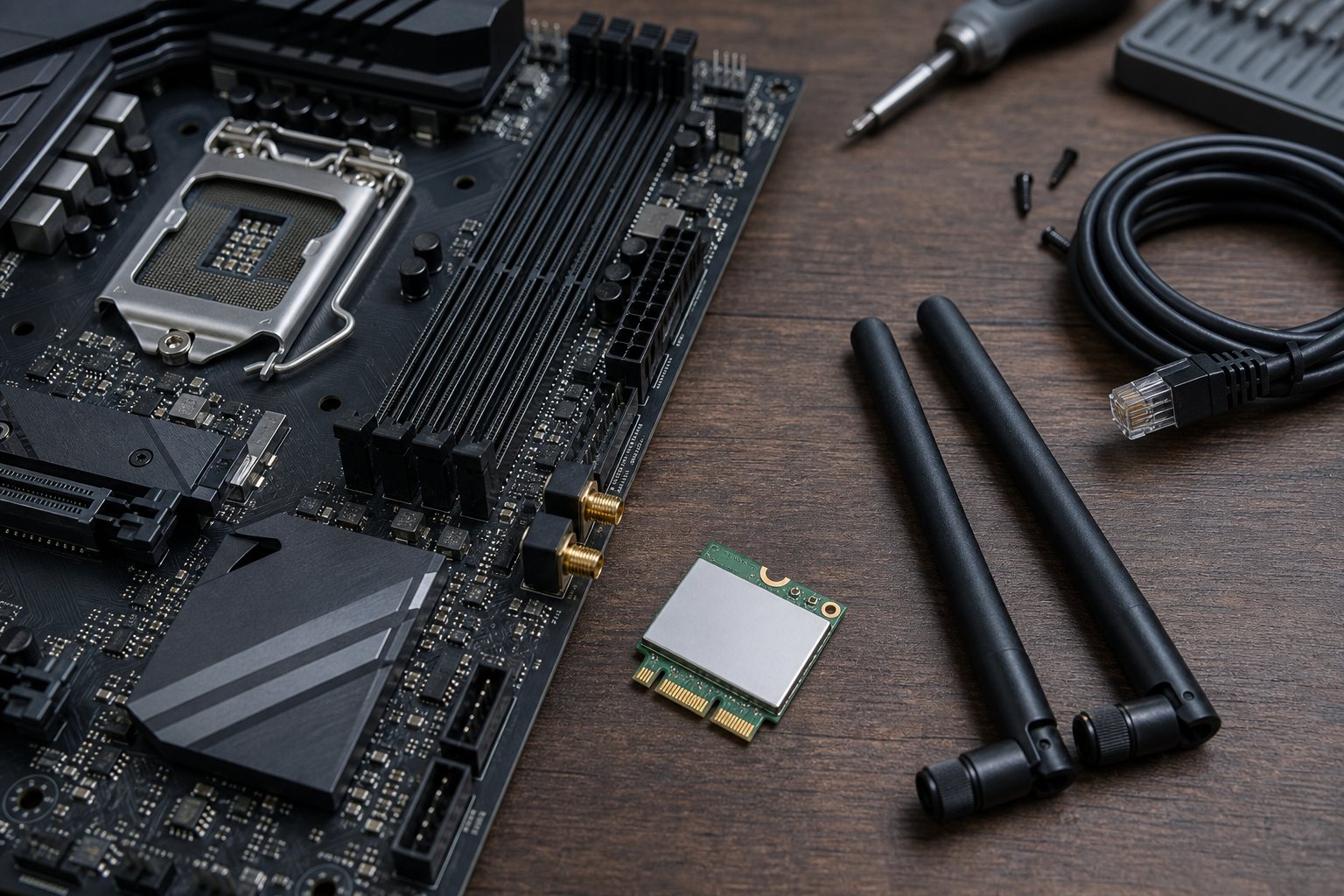

Missing Wi-Fi and Bluetooth on Used Motherboards

Used PC ads often say Wi-Fi because Windows shows a wireless icon, or assume a motherboard includes Bluetooth because a similar model does. Board families commonly have separate Wi-Fi and non-Wi-Fi versions. Even when the radio exists, missing antennas, driver problems, damaged rear connectors, or an internal USB issue can break part of the feature. Verify the exact hardware and both radios before paying. This check is separate from general motherboard power quality covered in our VRM guide.

Read the exact motherboard model and revision

Use System Information, CPU-Z, or the model printed on the board. Include suffixes such as WiFi, AX, AC, D4, or revision numbers because they can identify different products. Search the manufacturer's support page and manual. Confirm whether wireless is onboard, supplied through an M.2 Key E module, or absent. Do not infer features from a seller's retail box because boxes and boards can be mixed during upgrades. Check the rear panel for two antenna connectors.

Inspect antennas, connectors, and the radio module

Both antennas should be present, securely attached, and free of bent centre pins. A PC can connect without antennas at close range but perform terribly across a room. If accessible, verify the internal wireless module and its tiny antenna leads. Those snap connectors are easy to damage. Some desktop boards use a replaceable module under an input-output shroud, while others solder components. Do not dismantle the shroud at a meetup unless the seller agrees and the manual supports it.

Test Wi-Fi with a real network transfer

Connect to a known 5 GHz or 6 GHz network supported by the router and card. Check signal quality, negotiated link speed, Device Manager status, and whether the connection survives several minutes. A public speed test mixes internet performance with Wi-Fi quality, so also transfer a file on the local network when possible. Compare at the same location with another device. Repeated disconnects may come from drivers, poor antennas, interference, or a damaged module.

Test Bluetooth separately from Wi-Fi

Wi-Fi working does not prove Bluetooth works. On many PCIe wireless cards, Wi-Fi travels over PCIe while Bluetooth depends on a separate internal USB cable or motherboard connection. Pair a controller, headset, or phone, then reconnect after a restart. Check Device Manager for Bluetooth errors. If a plug-in card has no internal USB lead, Bluetooth may be completely absent despite working Wi-Fi. Range problems can also come from missing shared antennas.

1. Verify the board suffix and manufacturer feature list.
2. Inspect both antennas and rear connectors.
3. Test a sustained Wi-Fi connection and local transfer.
4. Pair and reconnect a Bluetooth device after reboot.

Distinguish driver trouble from missing hardware

Download drivers only from the motherboard or radio-chip manufacturer after identifying the exact model. Unknown devices in Device Manager can indicate missing chipset, Wi-Fi, or Bluetooth drivers. If the radio never appears in BIOS or Device Manager, inspect whether it is disabled, absent, or disconnected. A fresh Windows installation may solve software problems, but do not assume it will create hardware that the non-Wi-Fi board never included. Record hardware IDs before wiping the system.

Choose the right upgrade and price

A USB adapter is simple but can have weaker antennas and consume a port. A PCIe card with an Intel wireless module and external antennas often performs better, provided a slot and internal USB header are available. An M.2 module replacement must match Key E support and antenna layout. Include the card, antennas, USB cable, available lane, and installation time in your offer. For other overlooked costs, use our hidden repair cost guide.

Frequently asked questions

Why does Wi-Fi work but Bluetooth is missing?

On many add-in cards, Bluetooth requires a separate internal USB connection. The cable may be absent, disconnected, or attached to a disabled header even while the PCIe Wi-Fi radio works.

Can I add Wi-Fi to any desktop motherboard?

Usually through USB or a PCIe adapter, but check available slots, case clearance, operating-system support, and internal USB headers if Bluetooth is required.

Do motherboard Wi-Fi antennas affect Bluetooth?

Often yes because the module shares antenna paths for both radios. Missing or poorly positioned antennas can reduce Bluetooth range as well as Wi-Fi performance.

Is Wi-Fi 6E useful without a 6 GHz router?

The card can still use older supported bands, but you will not receive 6 GHz benefits without a compatible router and regional support. Buy for your actual network, not only the label.

Key takeaways

• Verify the exact board suffix and physical radio hardware.
• Test Wi-Fi and Bluetooth independently, including range and reconnects.
• Price antennas, adapters, headers, slots, and labour together.
